Surface mounted/anchor in tensions/no rigid cavity insulation.
AVAILABLE IN: Standard 14 ga x 1-1/4″ width x 6″ long w/ over 3″ of vertical adjustability
FINISH: Hot Dip Galvanized & Special Order Stainless Steel
Surface mounted/anchor in tension w/ rigid insulation.
AVAILABLE IN: 14 gauge with leg lengths to accommodate 0”, 1″, 1-1/2″, 2″, 2-1/2″, 3″, 3-½”, 4”, 4-½” insulation
FINISHES: Hot Dip Galvanized & Special Order Stainless Steel
Embeddable triangular ties compatible with Type-III anchors.
AVAILABLE IN: Standard dia. size of 3/16″ and lengths of 3″, 4″, 5″, 6″, 7″ & 9″
FINISHES: Hot Dip Galvanized & Special Order Stainless Steel

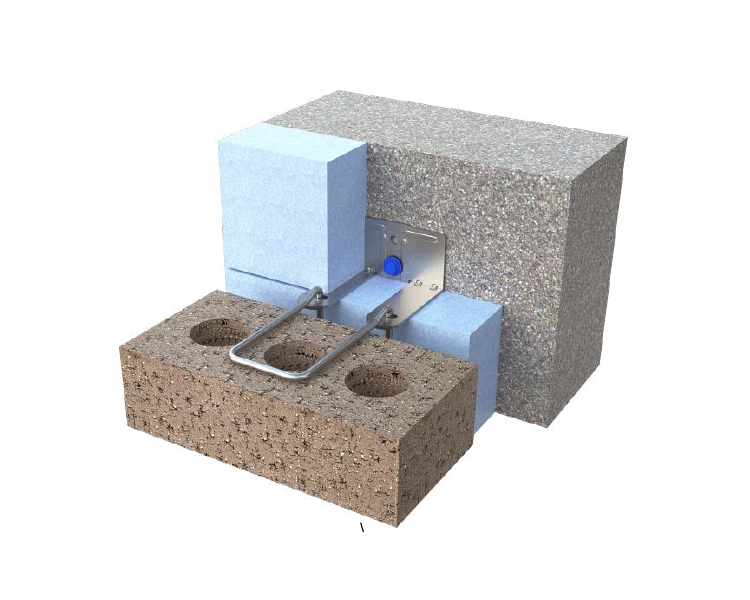

(With Rigid Cavity Insulation) Tying brick veneer to CMU or Concrete Substrate with rigid cavity insulation.
AVAILABLE IN: 14 gauge with leg lengths to accommodate 1″, 1-1/2″, 2″, 2-½”, 3″, 3-½”, 4”, 4-½” insulation.
FINISHES: Hot Dip Galvanized and Special Order Stainless Steel
(Standard) Surface mounted/anchor in tension w/ no rigid insulation.
AVAILABLE IN: Standard 14 gauge
FINISHES: Hot Dip Galvanized & Special Order Stainless Steel
Dovetail Triangular Tie is used to anchor masonry to concrete with a dovetail slot or a hammer pin. Permits horizontal and vertical movement of the masonry wall, while restraining tension and compression.
AVAILABLE IN: Standard 12 gauge x 1″ tail with a 5/16″ hole and triangle diameter of 3/16″.
Triangle sizes: 3″, 4″, 5″, 6″, 7″, 9″
FINISHES: Hot Dip Galvanized & Special Order Stainless Steel
